ball_valves

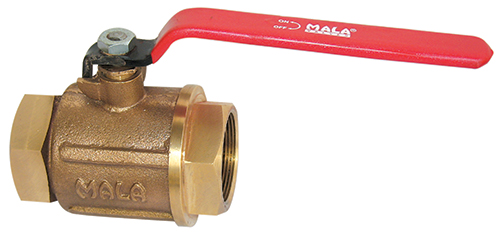

MM 201

mala Bronze Ball Valve Heavy

Specifications:

  • Two Piece Design, Full Bore, Blow Off Proof Stem,
    PTFE Seats & Seals, AISI:410 Ball & Stem, Lever Operated
    Pressure Rating – PN20
    Screwed Female BSP Parallel Threads to BS:21

Hyd. Tested:

  • 30 Kgf / cm2 (425 PSIG)

Size Range:

  • 15mm ( 1/2 ") - 100mm ( 4 " )
Download PDF

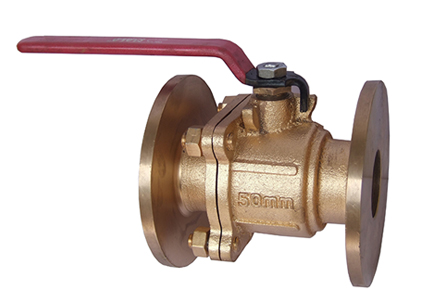

mala Bronze Ball Valve Flanged (With L.A & O/S Indicator)

Specifications:

  • Two Piece Design, Full Bore, Blow Off Proof Stem,
    PTFE Seats & Seals, AISI:410 Ball & Stem, Lever Operated
    Pressure Rating – PN20
    Flanges as per BS L 10 Table-D (Undrilled)

Hyd. Tested:

  • 30 Kgf / cm2 (425 PSIG)

Size Range:

  • 15mm ( 1/2 ") - 100mm ( 4 " )
Download PDF
Ball Valve

MM 201F

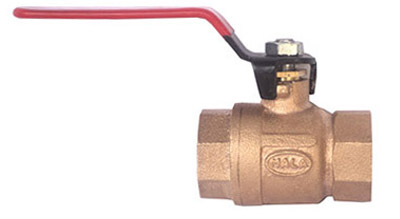

Ball Valve

MM-258

mala Bronze Ball Valve Super

Specifications:

  • Two Piece Design, Full Bore, Blow Off Proof Stem,
    PTFE Seats & Seals, AISI:410 Ball & Stem, Lever Operated
    Pressure Rating - PN16
    Screwed Female BSP Parallel Threads to BS:21

Hyd. Tested:

  • 24 Kgf / cm2 (340 PSIG)

Size Range:

  • 15mm ( 1/2 ") - 50mm ( 2 " )
Download PDF
