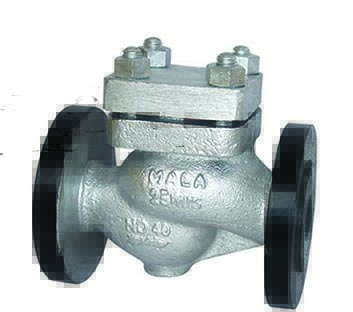

Cast Steel Horizontal Lift Check Valve Flanged

Specifications:

Cast Carbon Steel (IBR Clause 73 to 80 Gr.B) (ASTM A216 Gr. WCB)
Confirming to BS:5160 / DIN:2401 , Bolted Cover , With Renewable Seat & SS Trim.
Pressure Rating: PN-40
Flanges as per BS 4504 Part-1 / DIN 2545 RF (Undrilled)

Hyd. Tested:

77.5 Kg/cm² (1100 PSIG)

Size Range:

15mm ( 1/2 ") - 200mm ( 8 " )

Download PDF

check_valves

MM-446

check_valves

MM 450

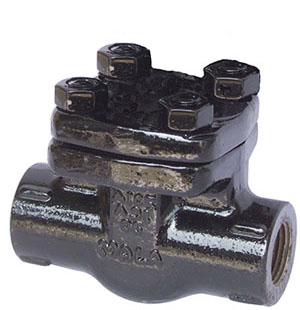

Forged Carbon Steel Horizontal Lift Check Valve

Specifications:

Confirming to BS:5352, Bolted Cover, Reduced Bore, Renewable Seat & Disc with S.S working parts.
Pressure Rating: Class-800
Screwed Female NPT Threads to ANSI 1983 OR Socket Welded Ends as per ASME B 16.11

Hyd. Tested:

211 Kgf / cm² (3000 PSIG)

Size Range:

15mm ( 1/2 ") - 50mm ( 2 " )

Download PDF
