mm 105

MM 105 (CL-1)
MM 114 (CL-2)

mala Bronze Globe Valve Scr.isi

Specifications:

  • Conforming to IS : 778 Screwed-in-Bonnet integral Seat, Inside Screw Rising Forged Stem
    Screwed Female Ends Conforming to IS : 554.
    (Available in CI -1 & CI -2 )

Hyd. Tested:

  • CI -1 : - Body : 1.5 Mpa Seat :1.0 Mpa
    CI -2 : - Body : 2.4 Mpa Seat : 1.6 Mpa

Size Range:

  • 15mm (1/2 ") - 100mm( 4 " )
Download PDF

mala Bronze Globe Valve Flg.isi

Specifications:

  • Conforming to IS : 778 Screwed-in-Bonnet integral Seat, Inside Screw Rising Forged Stem
    Flanged Ends. (Available in CI -1 & CI -2 )

Hyd. Tested:

  • CI -1 : - Body : 1.5 Mpa Seat :1.0 Mpa
    CI -2 : - Body : 2.4 Mpa Seat : 1.6 Mpa

Size Range:

  • 15mm ( 1/2 ") - 100mm( 4 " )
Download PDF
mm 105

MM 106 (CL-1)
MM 115 (CL-2)

Globe Valves

MM 202

malaBronze Globe Valve Super

Specifications:

  • Screwed in Bonnet, Inside Screw, Rising Stem with Integral Seat & Renewable Disc.
    Pressure Rating: PN-16
    Screwed Female BSP Parallel Threads to BS:21

Hyd. Tested:

  • 24 Kgf / cm2 (340 PSIG)

Size Range:

  • 15mm (1/2 ") - 100mm( 4 " )
Download PDF

mala Bronze Globe Valve No.4

Specifications

  • Screwed in Bonnet, Inside Screw, Rising Stem with Integral Seat & Renewable Disc.
    Pressure Rating: PN-20
    Screwed Female BSP Parallel Threads to BS:21

Hyd. Tested:

  • 30 Kgf / cm2 (425 PSIG)

Size Range:

  • 30 Kgf / cm2 (425 PSIG)
Note: On demand Teflon seating can be provided at extra cost.*
Download PDF
Globe Valves

MM 203

Globe Valves

MM 204

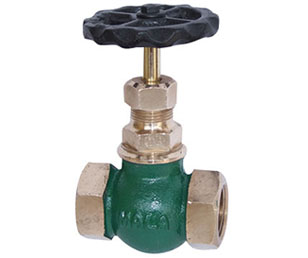

mala Bronze Globe Valve No.5

Specifications

  • Screwed in Bonnet, Inside Screw, Rising Stem with Integral Seat & Renewable Disc.
    Pressure Rating: PN-25
    Screwed Female BSP Parallel Threads to BS:21

Hyd. Tested:

  • 37.5 Kgf / cm2 (530 PSIG)

Size Range:

  • 8mm (1/4 ") - 100mm( 4 " )
Note: On demand Teflon seating can be provided at extra cost.*
Download PDF

mala Bronze Globe Valve Single Side Flanged

Specifications

  • Screwed in Bonnet, Inside Screw, Rising Stem,Integral Seat with Renewable Seat
    Pressure Rating - PN16
    Inlet Flange as per BS:10 Table-D (Undrilled)
    Outlet Screwed Female BSP Parallel Threads to BS:21

Hyd. Tested:

  • 24 Kgf/cm2 (340 PSIG)

Size Range:

  •  15mm ( 1/2 ") - 100mm ( 4 " )
Note: On demand teflon seating can be provided at extra cost Download PDF
Globe Valves

MM 205

Globe Valves

MM 206

mala Bronze Globe Valve Flanged No.8

Specifications

  • Screwed in Bonnet, Inside Screw, Rising Stem,Integral Seat,Renewable Disc.
    Pressure Rating - PN16
    Flanges as per BS:10 Table-D (Undrilled)

Hyd. Tested:

  • 24 Kgf/cm2 (340 PSIG)

Size Range:

  • 15mm ( 1/2 ") - 150mm ( 6 " )
Note: On demand teflon seating can be provided at extra cost Download PDF

mala Bronze Globe Valve Flanged No.8

Specifications

  • with Open Shut Indicator & Locking Arrangement
    Screwed in Bonnet, Inside Screw, Rising Stem,Integral Seat,Renewable Disc.
    Pressure Rating - PN16
    Flanges as per BS:10 Table-D (Undrilled)

Hyd. Tested:

  • 24 Kgf/cm2 (340 PSIG)

Size Range:

  •  15mm ( 1/2 ") - 100mm ( 4 " )
Note: On demand teflon seating can be provided at extra cost Download PDF
Globe Valves

MM 207

Globe Valves

MM 209

mala Bronze Angle Globe Valve No.4

Specifications

  • Right Angle Pattern,Screwed in Bonnet, Inside Screw, Rising Stem,Integral Seat.
    SPressure Rating - PN16
    Screwed Female BSP Parallel Threads to BS:21

Hyd. Tested:

  • 24 Kgf/cm2 (340 PSIG)

Size Range:

  • 4mm ( 1/8 ") - 50mm ( 2 " )
Note: On demand teflon seating can be provided at extra cost Download PDF

mala Bronze Needle Valve No.4

Specifications

  • Screwed in Bonnet, Inside Screw, Rising Stem, Integral Seat
    Pressure Rating - PN16
    Screwed Female BSP Parallel Threads to BS:21

Hyd. Tested:

  • 24 Kgf/cm2 (340 PSIG)

Size Range:

  •  4mm ( 1/8 ") - 50mm ( 2 " )
Download PDF
Globe Valves

MM 210

Globe Valves

MM 211

mala Bronze Angle Needle Valve No.4

Specifications

  • Right Angle Pattern,Screwed in Bonnet, Inside Screw, Rising Stem,Integral Seat.
    Pressure Rating - PN16
    Screwed Female BSP Parallel Threads to BS:21

Hyd. Tested:

  • 24 Kgf/cm2 (340 PSIG)

Size Range:

  •  4mm ( 1/8 ") - 25mm ( 1 " )
Download PDF

mala Bronze Globe Valve No.5

Specifications

  • Screwed in Bonnet, Inside Screw, Rising Stem, Renewable Seat with SS Parts
    Pressure Rating - PN25
    Screwed Female BSP Parallel Threads to BS:21

Hyd. Tested:

  • 37.5 Kgf/cm2 (530 PSIG)

Size Range:

  • 37.5 Kgf/cm2 (530 PSIG)
Download PDF
Globe Valves

MM-235

Globe Valves

MM-236

mala Bronze Globe Valve Flg.

Specifications

  • Screwed in Bonnet, Inside Screw, Rising Stem, Renewable Seat with SS Parts
    Pressure Rating - PN25
    Flanges as per BS:10 Table-H (Undrilled)

Hyd. Tested:

  • 37.5 Kgf/cm2 (530 PSIG)

Size Range:

  • 15mm ( 1/2 ") - 100mm ( 4 " )
Download PDF

mala Bronze Union Bonnet Wheel Valve No.9

Specifications

  • Union Bonnet, Inside Screw, Rising Stem,Renewable Seat with SS working Parts
    Pressure Rating - PN25
    Screwed Female BSP Parallel Threads to BS:21

Hyd. Tested:

  • 37.5 Kgf/cm2 (530 PSIG)

Size Range:

  • 8mm ( 1/4 ") - 100mm ( 4 " )
Download PDF
Globe Valves

MM-237
