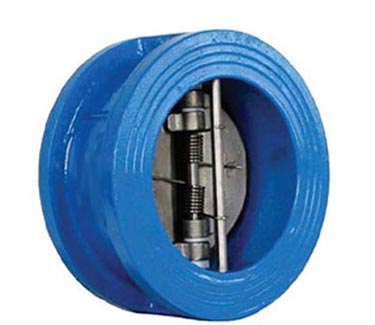

Cast Iron/S.G Iron Dual Plate Check Valve

Specifications:

Dual Plate Wafer Type Swing Check Valve with SS Spring.
Seat : Resilient EPDM / Nitrile
Disc : SG Iron
Pressure Rating - PN16
Suitable for Insertion between PN-10 / PN-16 / CL-150 / BS:10,Table D / E / F Flanges.

Hyd. Tested:

24 Kgf/cm² (340 PSIG)

Size Range:

40mm ( 1-1/2 ") - 250mm (10 ")

Download PDF

check_valves

MM-309

check_valves

MM-310

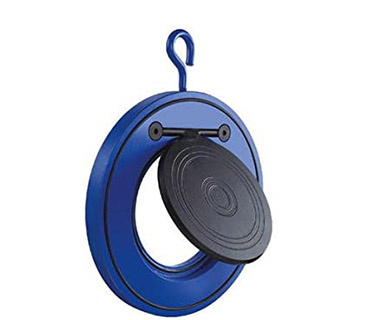

Cast Iron/S.G Iron Wafer Type Swing Check Valve

Specifications:

Wafer Type Swing Check Valve , Resilient Seated, Non Slam with SS Spring.
Seat: EPDM / Nitrile
Disc: SG Iron
Pressure Rating - PN16
Suitable for Insertion between PN-10 / PN-16 / CL-150 / BS:10,Table E / F / H Flanges.

Hyd. Tested:

24 Kgf/cm² (340 PSIG)

Size Range:

40mm ( 1-1/2 ") - 250mm ( 10 " )

Download PDF

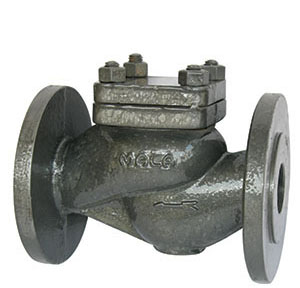

Cast Iron/S.G Iron Horizontal Lift Check Valve Flg.

Specifications:

Straight Pattern Confirming to BS:5153, Bolted Cover, Renewable Seat & Disc with S.S working parts.
Pressure Rating: PN-16
Flanged as per DIN:2533 PN-16 RF (Undrilled)

Hyd. Tested:

26 Kgf / cm² (350 PSIG)

Size Range:

26 Kgf / cm² (350 PSIG)

Download PDF

check_valves

MM 439

check_valves

MM 440

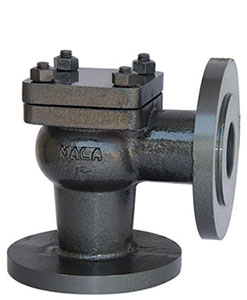

Cast Iron/S.G Iron Horizontal Lift Check Valve Flg.

Specifications

Right Angle Pattern Confirming to BS:5153, Bolted Cover, Renewable Seat & Disc with S.S working parts.
Pressure Rating: PN-16
Flanged as per DIN:2533 PN-16 RF (Undrilled)

Hyd. Tested -

26 Kgf / cm² (350 PSIG)

Size Range:

15mm ( 1/2 ") - 150mm ( 6 " )

Download PDF

Cast Iron/S.G Iron Swing Check Valve

Specifications:

Bolted Cover, Renewable Stainless Steel (AISI-410) Seat
Flanges as per BS : 10 Table -F, (Undrilled)

Hyd. Tested:

Body 26 Kgf / cm² (370 PSIG)
Seat 16 Kgf / cm² (230 PSIG)

Size Range:

40mm (1 1/2 ") - 100mm( 4 " )

Download PDF

check_valves

MM 458
