Safety Relief

MM 247

Bronze Safety Relief Valve (OD)

Specifications:

Straight Type Design, Spring Loaded, Open Discharge, Renewable Disc, Integral Seat
with Gun Metal Working Parts.
Screwed Male BSP Parallel Threads to BS:21

Set Pressure:

10.55 Kgf / cm² (150 PSIG)

Size Range:

15mm ( 1/2 ") - 50mm ( 2 " )

Download PDF

Bronze Safety Relief Valve (ED)

Specifications:

Right Angle Type Design, Spring Loaded, Enclosed Discharge, Renewable Disc, Integral Seat
with Gun Metal Working Parts.
Inlet - Screwed Male BSP Parallel Threads to BS:21
Outlet – Screwed Female BSP Parallel Threads to BS:21

Working Pressure:

10.55 Kgf / cm² (150 PSIG)

Size Range -

15mm ( 1/2 ") - 50mm ( 2 " )

Download PDF

Safety

MM 248

Safety

MM 425

Bronze Pop Type Safety Relief Valve Screwed

Specifications:

Straight Type Design, Spring Loaded, Pop-up Type, Renewable Disc, Integral Seat
with Gun Metal Working Parts.
Screwed Male BSP Parallel Threads to BS:21

Working Pressure:

10.55 Kgf / cm² (150 PSIG)

Size Range:

15mm ( 1/2 ") - 50mm ( 2 " )

Download PDF

Bronze Pop Type Safety Relief Valve Flanged

Specifications:

Straight Type Design, Spring Loaded, Pop-up Type, Renewable Disc, Integral Seat
with Gun Metal Working Parts.
Flanges as per BS:10 Table-H (Undrilled)

Working Pressure:

10.55 Kgf /cm² (150 PSIG)

Size Range:

15mm ( 1/2 ") - 50mm ( 2 " )

Download PDF

Safety

MM 426

Safety

MM 427

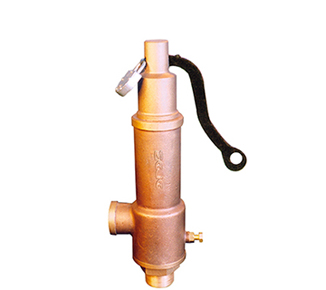

Bronze Pop Type Safety Valve Screwed

Specifications:

Right Angle Type Design, Pop Type, Enclosed Discharge, Renewable Disc & Seat
with Gun Metal Working Parts.
Inlet - Screwed Male BSP Parallel Threads to BS:21
Outlet – Screwed Female BSP Parallel Threads to BS:21

Hyd. Tested:

35 Kgf / cm² (500 PSIG)

Size Range:

15mm ( 1/2 ") - 50mm ( 2 " )

Download PDF

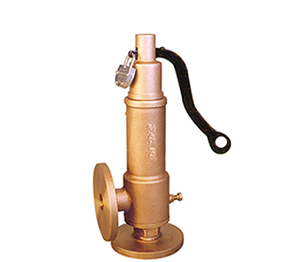

Bronze Pop Type Safety Valve Screwed

Specifications:

Right Angle Type Design, Pop Type, Enclosed Discharge, Renewable Disc & Seat
with Gun Metal Working Parts.
Flanges as per BS:10 Table H (Undrilled)

Hyd. Tested:

35 Kgf /cm² (500 PSIG)

Size Range:

15mm ( 1/2 ") - 50mm ( 2 " )

Download PDF

Safety

MM 428
