check_valves

MM 107 CL-1)
MM 116 (CL-2)

mala Bronze Horizontal Lift Check Valve Screwed isi

Specifications:

  • Confirming to IS: 778, Screwed in Cover, Integral Seat with Gun – Metal working parts. (Available in Class-1 & Class-2)
    Screwed Female Threads to IS:554 Parallel

Hyd. Tested:

  • CI -1 : - Body : 1.5 Mpa Seat : 1.0 Mpa
    CI -2 : - Body : 2.4 Mpa Seat : 1.6 Mpa

Size Range:

  • 15mm (1/2 ") - 100mm( 4 " )
Download PDF

malaBronze Horizontal Lift Check Valve Flanged isi

Specifications:

  • Confirming to IS: 778, Screwed in Cover, Integral Seat with Gun – Metal working parts.
    (Available in Class-1 & Class-2)
    Flanges as per IS:778 Class -1 & Class -2 (Undrilled)

Hyd. Tested:

  • CI -1 : - Body : 1.5 Mpa Seat : 1.0 Mpa
    CI -2 : - Body : 2.4 Mpa Seat : 1.6 Mpa

Size Range:

  • 15mm (1/2 ") - 100mm( 4 " )
Download PDF
check_valves

MM 108 (CL-1)
MM 117 (CL-2)

check_valves

MM 219

mala Bronze Horizontal Check Valve Super

Specifications:

  • Screwed in Cover, Integral Seat & Renewable Disc with Gun-Metal working parts.
    Pressure Rating:PN-16
    Screwed Female BSP Paralled Threads to BS:21

Hyd. Tested:

  • 24 Kgf / cm2 (340 PSIG)

Size Range:

  • 15mm ( 1/2 ") - 100mm ( 4 " )
Download PDF

mala Bronze Horizontal Check Valve No.4

Specifications:

  • Screwed in Cover, Integral Seat & Renewable Disc with Gun-Metal working parts.
    Pressure Rating:PN-20
    Screwed Female BSP Paralled Threads to BS:21

Hyd. Tested:

  • 30 Kgf / cm2 (425 PSIG)

Size Range:

  • 4mm ( 1/8 ") - 150mm ( 6 " )
Download PDF
check_valves

MM 220

check_valves

MM 221 / 241

mala Bronze Horizontal Check Valve No.5

Specifications:

  • Screwed in Cover, Integral Seat & Renewable Disc with Gun-Metal working parts.
    Pressure Rating:PN-25
    Screwed Female BSP Paralled Threads to BS:21

Hyd. Tested:

  • 37.5 Kgf / cm2 (530 PSIG)

Size Range:

  • 8mm ( 1/4 ") - 100mm ( 4 " )
Download PDF

mala Bronze Angle Horizontal Check Valve

Specifications:

  • Right Angle Pattern,Screwed in Cover,Integral Seat
    Pressure Rating - PN16
    Screwed Female BSP Parallel Threads to BS:21

Hyd. Tested:

  • 24 Kgf/cm2 (340 PSIG)

Size Range:

  • 15mm ( 1/2 ") - 50mm ( 2 " )
Download PDF
check_valves

MM 222

check_valves

MM 223

mala Bronze Horizontal Check Valve Flanged No.8

Specifications:

  • Screwed in Cover, Integral Seat, Renewable Disc with Gun – Metal working parts
    Pressure Rating:PN-16
    Flanges as per BS:10 Table-D (Undrilled)

Hyd. Tested:

  • 24 Kgf / cm2 (340 PSIG)

Size Range:

  • 15mm ( 1/2 ") - 150mm ( 6 " )
Download PDF

mala Bronze Vertical Check Valve

Specifications:

  • Check Valve with Integral Seat, Renewable Disc & Gun-Metal working parts.
    Pressure Rating: PN-16
    Screwed Female BSP Parallel Threads to BS:21

Hyd. Tested:

  • 24 Kgf / cm2 (340 PSIG)

Size Range:

  • 15mm ( 1/2 ") - 100mm ( 4 " )
Download PDF
check_valves

MM 225 / 226

check_valves

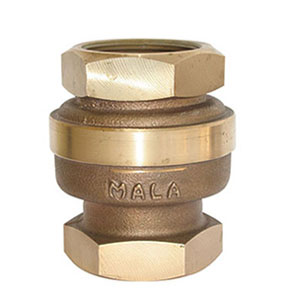

MM 227

malaBronze Vertical Check Valve (Two Piece)

Specifications:

  • Two Piece Design Check Valve with Integral Seat, Renewable Disc & Gun-Metal working parts.
    Pressure Rating: PN-20
    Screwed Female BSP Parallel Threads to BS:21

Hyd. Tested:

  • 30 Kgf / cm2 (425 PSIG)

Size Range:

  • 15mm ( 1/2 ") - 50mm ( 2 " )
Download PDF
