globe_valves

MM 445

mala Cast Steel Steam Stop Valve Flangedibrr

Specifications

  • Confirming to BS 5160/ DIN 2401 ,Back Seat Arrangement, Bolted Bonnet, O/S & Yoke Type, Rising Stem, Renewable Seat & Disc with S.S working parts.
    Pressure Rating: PN-40
    Flanges as per BS: 4504 Part-1 / DIN: 2545 RF (Undrilled)

Hyd. Tested:

  • 77.5 Kgf / cm2 (1100 PSIG)

Size Range:

  • 15mm (1/2 ") – 200mm ( 8 " )
Download PDF

mala Forged Carbon Steel Globe Valve ibrr

Specifications

  • Confirming to BS: 5352, Bolted Bonnet ,Back Seat Arrangement, Reduced Bore, O/S & Yoke Type, Rising Stem, Renewable Seat with S.S working parts.
    Pressure Rating – Class 800
    Screwed Female NPT Threads to ANSI B1.20.1 OR Socket Welded Ends as per ASME B 16.11

Hyd. Tested:

  • 211 Kgf / cm2 (3000 PSIG)

Size Range:

  • 15mm (1/2 ") - 50mm( 2 " )
Download PDF
Globe Valve

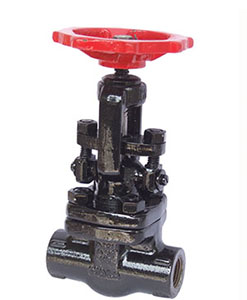

MM 449

globe_valves

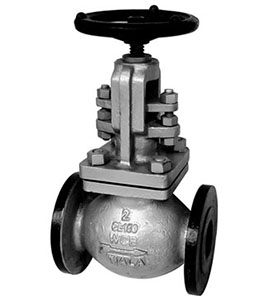

MM-464 (CL-150)
MM-465 (CL-300)

mala Cast Steel Globe Valve Flg.ibrr

Specifications

  • Confirming to BS:1873 , Back Seat Arrangement, Bolted Bonnet, O/S & Yoke Type, Rising Stem , Renewable Seat with SS (AISI 410) components & Aluminium Bronze Yoke Bush.
    Pressure Rating: Class-150 & Class-300
    Class-150: Flanges as per ASME B 16.5 Class-150 RF (Undrilled)
    Class-300: Flanges as per ASME B 16.5 Class-300 RF (Undrilled)

Hyd. Tested:

  • Class-150: 31 Kg/cm2 (435 PSIG)
    Class-300: 77.5 Kg/cm2 (1100 PSIG)

Size Range:

  • 25mm ( 1 ") - 250mm ( 10 " )
Download PDF
