mm-101

MM 101 (CL-1)
MM 110 (CL-2)

mala Bronze Gate Valve Scr. isi

Specifications:

  • Conforming to IS : 778 Screwed-in-Bonnet, Integral Seat, Inside Screw, Non-Rising Stem, Back Seat Arrangement.
    Screwed Female Ends Conforming to IS : 554.
    (Available in CI -1 & CI -2 )

Hyd. Tested:

  • CI -1 : - Body : 1.5 Mpa Seat :1.0 Mpa
    CI -2 : - Body : 2.4 Mpa Seat : 1.6 Mpa

Size Range:

  • 15mm (1/2 ") - 100mm( 4 " )
Download PDF

mala Bronze Gate Valve Flg.isi

Specifications:

  • Conforming to IS : 778 Screwed-in-Bonnet,Integral Seat, Inside Screw, Non-Rising Stem,Back Seat Arrangement, Flanged Ends.
    (Available in CI -1 & CI -2 )

Hyd. Tested:

  • CI -1 : - Body : 1.5 Mpa Seat :1.0 Mpa
    CI -2 : - Body : 2.4 Mpa Seat : 1.6 Mpa

Size Range:

  • 15mm ( 1/2 ") - 100mm( 4 " )
Download PDF

MM 102 (CL-1)
MM 111 (CL-2)

mm-103

MM-103 (CL -1)
MM-112 (CL -2)

mala Bronze Gate Valve Scr.isi

Specifications:

  • Confirming to IS:778 Screwed-in-Bonnet,Integral Seat , Inside Screw,Rising Stem, Solid Wedge, Back Seat Arrangement.
    Screwed Female Ends to IS:554 Parallel
    (Available in CL -1 & CL -2 )

Hyd. Tested:

  •  CL -1 : - Body : 1.5 Mpa Seat :1.0 Mpa
      CL -2 : - Body : 2.4 Mpa Seat : 1.6 Mpa

Size Range:

  • 15mm (1/2 ") - 100mm( 4 " )
Download PDF

mala Bronze Gate Valve Flg.isi

Specifications:

  • Confirming to IS:778 Screwed-in-Bonnet,Integral Seat , Inside Screw,Rising Stem, Solid Wedge, Back Seat Arrangement.
    Flanges as per IS:778 Class-1 & Class-2 (Undrilled)
    (Available in CL -1 & CL -2 )

Hyd. Tested:

  •   CL -1 : - Body : 1.5 Mpa Seat :1.0 Mpa
     CL -2 : - Body : 2.4 Mpa Seat : 1.6 Mpa

Size Range:

  •  15mm (1/2 ") - 100mm( 4 " )
Download PDF
mm-104

MM-104 (CL -1)
MM-113 (CL -2)

MM 212

MM 212

mala Bronze Gate Valve Super

Specifications:

  • Screwed in Bonnet, Inside Screw ,Non-Rising Stem with Integral Seat
    Pressure Rating:PN-16
    Screwed Female BSP Paralled Threads to BS:21

Hyd. Tested:

  • 24 Kgf / cm2 (340 PSIG)

Size Range:

  • 15mm ( 1/2 ") - 100mm ( 4 " )
Download PDF

mala Bronze Gate Valve Pegler

Specifications:

  • Screwed in Bonnet, Inside Screw ,Non-Rising Stem with Integral Seat
    Pressure Rating:PN-20
    Screwed Female BSP Paralled Threads to BS:21

Hyd. Tested:

  • 30 Kgf / cm2 (425 PSIG)

Size Range:

  • 30 Kgf / cm2 (425 PSIG)
Download PDF
gate_valves

MM 213

gate_valves

MM 215

mala Bronze Gate Valve Standard

Specifications:

  • Screwed in Bonnet, Inside Screw ,Non-Rising Stem with Integral Seat.
    Pressure Rating:PN-25
    Screwed Female BSP Paralled Threads to BS:21

Hyd. Tested:

  • 37.5 Kgf / cm2 (530 PSIG)

Size Range:

  • 15mm ( 1/2 ") - 100mm ( 4 " )
Download PDF

mala Bronze Gate Valve Single Side Flanged

Specifications:

  • Screwed in Bonnet, Inside Screw, Non-Rising Stem , Integral Seat
    Pressure Rating - PN16
    Inlet Flange as per BS:10 Table-D (Undrilled)
    Outlet Screwed Female BSP Parallel Threads to BS:21

Hyd. Tested:

  • 24 Kgf/cm2 (340 PSIG)

Size Range:

  •  15mm ( 1/2 ") - 80mm ( 3 " )
Download PDF
Gate Valves

MM-216

Gate Valves

MM-217

mala Bronze Gate Valve Standard Flanged

Specifications:

  • Screwed in Bonnet, Inside Screw ,Non-Rising Stem with Integral Seat.
    Pressure Rating:PN-20
    Flanges as per BS:10 Table-D (Undrilled)

Hyd. Tested:

  • 30 Kgf / cm2 (425 PSIG)

Size Range:

  • 15mm ( 1/2 ") - 100mm ( 4 " )
Download PDF

mala Bronze Gate Valve Flanged (With L.A & O/S Indicator)

Specifications:

  • Screwed in Bonnet, Inside Screw, Non-Rising Stem , Integral Seat
    Pressure Rating – PN20
    Inlet Flange as per BS:10 Table-D (Undrilled)

Hyd. Tested:

  • 30 Kgf/cm2 (425 PSIG)

Size Range:

  • 30 Kgf/cm2 (425 PSIG)
Download PDF
Gate Valves

MM-218

gate_valves

MM-257

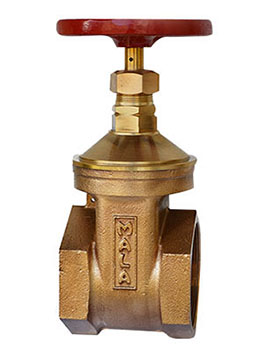

mala Bronze Gate Valve (Tanker)

Specifications:

  • Screwed in Bonnet, Inside Screw, Non-Rising Stem,Integral Seat
    Pressure Rating
    WOM / WOG - PN-16
    PEGLER / ISI - PN-20
    STANDARD - PN-25
    Screwed Female BSP Parallel Threads to BS:21

Hyd. Tested:

  • PN-16 24 Kgf/cm2 (340 PSIG)
    PN-20 30 Kgf/cm2 (425 PSIG)
    PN-25 37.5 Kgf/cm2 ( 530 PSIG)

Size Range:

  •  80mm ( 3 ")
Download PDF
