Transformer

MM 201F

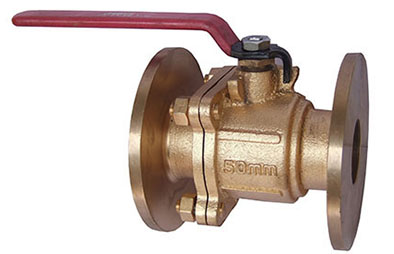

mala Bronze Ball Valve Flanged

Specifications:

  • Two Piece Design, Full Bore, Blow Off Proof Stem,
    PTFE Seats & Seals, AISI:410 Ball & Stem, Lever Operated
    Pressure Rating – PN20
    Flanges as per BS L 10 Table-D (Undrilled)

Hyd. Tested:

  • 30 Kgf / cm2 (425 PSIG)

Size Range:

  • 15mm ( 1/2 ") - 100mm ( 4 " )
Download PDF

mala Bronze Ball Valve Flanged (With L.A & O/S Indicator)

Specifications:

  • Two Piece Design, Full Bore, Blow Off Proof Stem,
    PTFE Seats & Seals, AISI:410 Ball & Stem, Lever Operated
    Pressure Rating – PN20
    Flanges as per BS L 10 Table-D (Undrilled)

Hyd. Tested:

  • 30 Kgf / cm2 (425 PSIG)

Size Range:

  • 15mm ( 1/2 ") - 100mm ( 4 ")
GATE VALVE SINGLE SIDE FLANGED
Download PDF
Transformer

MM 201FL

Transformer

MM 203

mala Bronze Globe Valve No.4

Specifications:

  • Screwed in Bonnet, Inside Screw, Rising Stem , Integral Seat with renewable Disc
    Pressure Rating: PN-20
    Screwed Female BSP Parallel Threads to BS:21

Hyd. Tested:

  • 20 Kgf/cm2 (300 PSIG)

Size Range:

  • 15mm (1/2 ") - 150mm ( 6 " )
Download PDF

mala Bronze Globe Valve No.4
(With L.A & O/S Indicator)

Specifications:

  • Screwed in Bonnet, Inside Screw, Rising Stem , Integral Seat with renewable Disc
    Pressure Rating: PN-20
    Screwed Female BSP Parallel Threads to BS:21

Hyd. Tested:

  • 20 Kgf/cm2 (300 PSIG)

Size Range:

  • 15mm (1/2 ") - 150mm ( 6 " )
Download PDF

MM 203L

Transformer

MM 205

mala Bronze Globe Valve Single Side Flanged

Specifications:

  • Screwed in Bonnet, Inside Screw, Rising Stem, Integral Seat with Renewable Disc
    Pressure Rating : PN -16
    Inlet Flange as per BS : 10 Table 'D' (Undrilled)
    Outlet Screwed Female BSP Parallel Threads to BS:21

Hyd. Tested:

  • 24 Kgf / cm2(340 PSIG) )

Size Range:

  • 15mm (1/2 ") - 100mm( 4 " )
Download PDF

malaBronze Globe Valve Single Side Flg. (With L.A & O/S Indicator)

Specifications:

  • Screwed in Bonnet, Inside Screw, Rising Stem, Integral Seat with Renewable Disc
    Pressure Rating : PN -16
    Flanges as per BS : 10 Table 'D' (Undrilled)
    Outlet Screwed Female BSP Parallel Threads to BS:21

Hyd. Tested:

  • 24 Kgf / cm2(340 PSIG)

Size Range:

  • 15mm (1/2 ") - 100mm( 4 " )
Download PDF
Transformer

MM 205L

Transformer

MM 206

mala Bronze Globe Valve Flanged No.8

Specifications:

  • Screwed in Bonnet, Inside Screw, Rising Stem, Integral Seat with Renewable Disc
    Pressure Rating : PN -16
    Flanges as per BS : 10 Table 'D' (Undrilled)

Hyd. Tested:

  • 24 Kgf / cm2 (340 PSIG)

Size Range:

  • 15mm (1/2 ") - 150mm ( 6 " )
Download PDF

mala Bronze Globe Valve Flg. No.8 (With L.A & O/S Indicator)

Specifications:

  • Screwed in Bonnet, Inside Screw, Rising Stem, Integral Seat with Renewable Disc
    Pressure Rating : PN -16
    Flanges as per BS : 10 Table 'D' (Undrilled)

Hyd. Tested:

  • 24 Kgf / cm2 (340 PSIG)

Size Range:

  • 15mm (1/2 ") - 100mm ( 4 " )
Download PDF
Transformer

MM 207

Transformer

MM 213

mala Bronze Gate Valve Scr.

Specifications:

  • Screwed in Bonnet, Inside Screw ,Non-Rising Stem with Integral Seat.
    Pressure Rating:PN-20
    Screwed Female BSP Paralled Threads to BS:21

Hyd. Tested:

  • 24 Kgf / cm2 (340 PSIG)

Size Range:

  • 15mm ( 1/2 ") - 100mm ( 4 " )
Download PDF

mala Bronze Gate Valve Scr.
(With L.A & O/S Indicator)

Specifications:

  • Screwed in Bonnet, Inside Screw ,Non-Rising Stem with Integral Seat.
    Pressure Rating:PN-20
    Screwed Female BSP Paralled Threads to BS:21

Hyd. Tested:

  • 24 Kgf / cm2 (340 PSIG)

Size Range:

  • 15mm ( 1/2 ") - 100mm ( 4 " )
Download PDF

MM 213L

Transformer

MM 216

malaBronze Gate Valve Single Side Flanged

Specifications:

  • Screwed in Bonnet, Inside Screw, Non-Rising Stem , Integral Seat
    Pressure Rating - PN16
    Inlet Flange as per BS:10 Table-D (Undrilled)
    Outlet Screwed Female BSP Parallel Threads to BS:21

Hyd. Tested:

  • - 24 Kgf/cm2 (340 PSIG)

Size Range:

  • 15mm ( 1/2 ") - 80mm ( 3 " )
Download PDF

mala Bronze Gate Valve Single Side Flanged

Specifications:

  • Screwed in Bonnet, Inside Screw, Non-Rising Stem , Integral Seat
    Pressure Rating - PN16
    Inlet Flange as per BS:10 Table-D (Undrilled)
    Outlet Screwed Female BSP Parallel Threads to BS:21

Hyd. Tested:

  • 24 Kgf/cm2 (340 PSIG)

Size Range:

  • 15mm ( 1/2 ") - 80mm (3")
Download PDF
Transformer

MM 216L

Transformer

MM 217

mala Bronze Gate Valve Standard Flanged

Specifications:

  • Screwed in Bonnet, Inside Screw, Non-Rising Stem , Integral Seat
    Pressure Rating – PN20
    Inlet Flange as per BS:10 Table-D (Undrilled)

Hyd. Tested:

  • 30 Kgf/cm2 (425 PSIG)

Size Range:

  • 15mm ( 1/2 ") - 150mm ( 6 " )
Download PDF

mala Bronze Gate Valve Flanged (With L.A & O/S Indicator)

Specifications:

  • Screwed in Bonnet, Inside Screw, Non-Rising Stem , Integral Seat
    Pressure Rating – PN20
    Inlet Flange as per BS:10 Table-D (Undrilled)

Hyd. Tested:

  • 30 Kgf/cm2 (425 PSIG)

Size Range:

  • 15mm ( 1/2 ") - 100mm (4 ")
Download PDF
Transformer

MM 218
