238

MM 238

mala Bronze Union Bonnet Globe Valve Flanged No.9F

Specifications:

  • Union Bonnet, Inside Screw, Rising Stem, Renewable Seat & Disc with S.S working Parts.
    Pressure Rating: PN-25
    Flanges as per BS:10 Table-F (Undrilled)

Hyd. Tested:

  • 37.5 Kgf / cm2 (530 PSIG)

Size Range:

  • 15mm (1/2 ") - 100mm ( 4 " )
Download PDF

mala Bronze Steam Stop Valve

Specifications:

  • Screwed in Bonnet, Inside Screw, Rising Stem, Renewable Seat & Disc with S.S working parts.
    Pressure Rating: PN-25
    Screwed Female BSP Taper Threads to BS:21

Hyd. Tested:

  • 35 Kgf / cm2 (500 PSIG)

Size Range:

  • 35 Kgf / cm2 (500 PSIG)
Download PDF
globe_valves

MM 239

globe_valves

MM 401

mala Bronze Steam Stop Valve Screwediso

Specifications:

  • Straight Pattern with Back Seat Arrangement ,Screwed in Bonnet ,Inside Screw, Rising Stem, Renewable Seat & Disc with S.S working parts.
    Pressure Rating: PN-25
    Screwed Female BSP Taper Threads to BS:21

Hyd. Tested:

  • 35 Kgf / cm2 (500 PSIG)

Size Range:

  • 15mm (1/2 ") - 50mm ( 2 " )
Download PDF

malaBronze Steam Stop Valve Flanged ISO

Specifications:

  • Straight Pattern with Back Seat Arrangement ,Screwed in Bonnet ,Inside Screw, Rising Stem, Renewable Seat & Disc with S.S working parts.
    Pressure Rating: PN-25
    Screwed Female BSP Taper Threads to BS:21

Hyd. Tested:

  • 35 Kgf / cm2 (500 PSIG)

Size Range:

  • 15mm (1/2 ") - 50mm ( 2 " )
Download PDF
globe_valves

MM 402

Globe Valves

MM-469

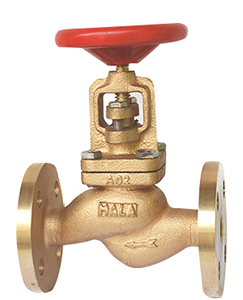

mala Bronze Marine Globe Valve Flanged.

Specifications

  • Confirming to DIN:86260 , Bronze Bolted Cover, Rising Stem, Metal Seated Gland Packed Globe Valve.
    Pressure Rating : PN-16
    Flanges as per PN-16 (Undrilled)

Hyd. Tested:

  • 32 Kgf/cm2 ( 450 PSIG)

Size Range:

  •  15mm ( 1/2 ") - 100mm ( 4 " )
Note : On demand Screw Down Non-Return (SDNR) type also available.
Download PDF
